DIRECT BOXES

An audio jack with a cartoon face

What is a Direct Box?

MyStarSound

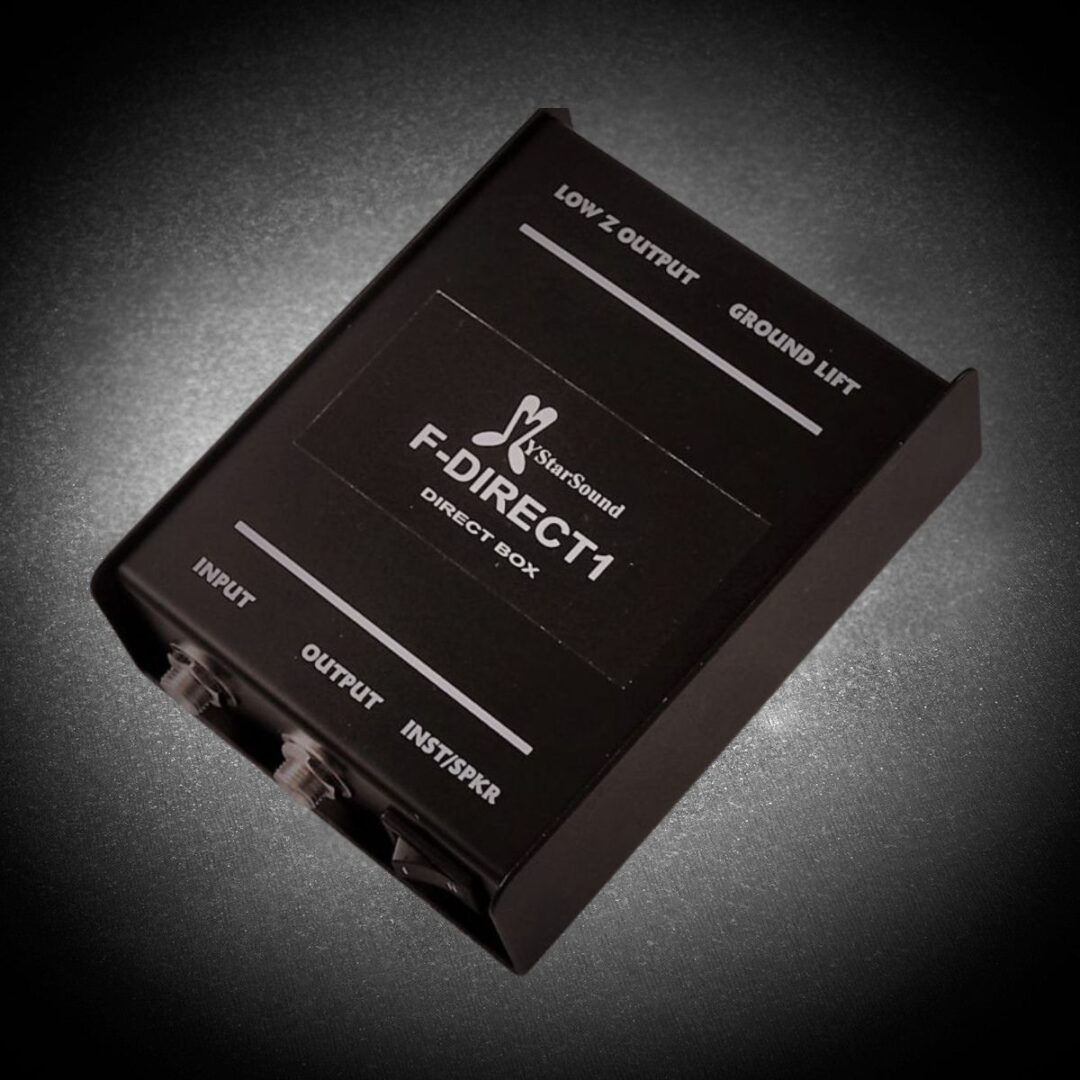

F1 DIRECT BOX

Designed to meet the need for converting an unbalanced instrument input, or high impedance signal, into a balanced low impedance signal that is capable of being run long distances without loss of fidelity, the F-direct-1 readily fulfills the demands of today's sound engineers and musicians in a user friendly, yet economical package.

The F-Direct-1 Direct Box by MyStarSound features

  • A sturdy 20 gauge steel case constructed in a handy rectangular design with rubber pads for stability and protection when stacked.
  • Each Direct Box has a durable finish completed with hi-visibility lettering which offers visibility even in low light situations.
  • A  ground lift switch on the output side to eliminate ground loop noise, and a Speaker/Instrument attenuation switch on the input side.
  • All connections from the parallel in/out jacks to the XLR male output are high quality all-metal connectors.
MyStarSound

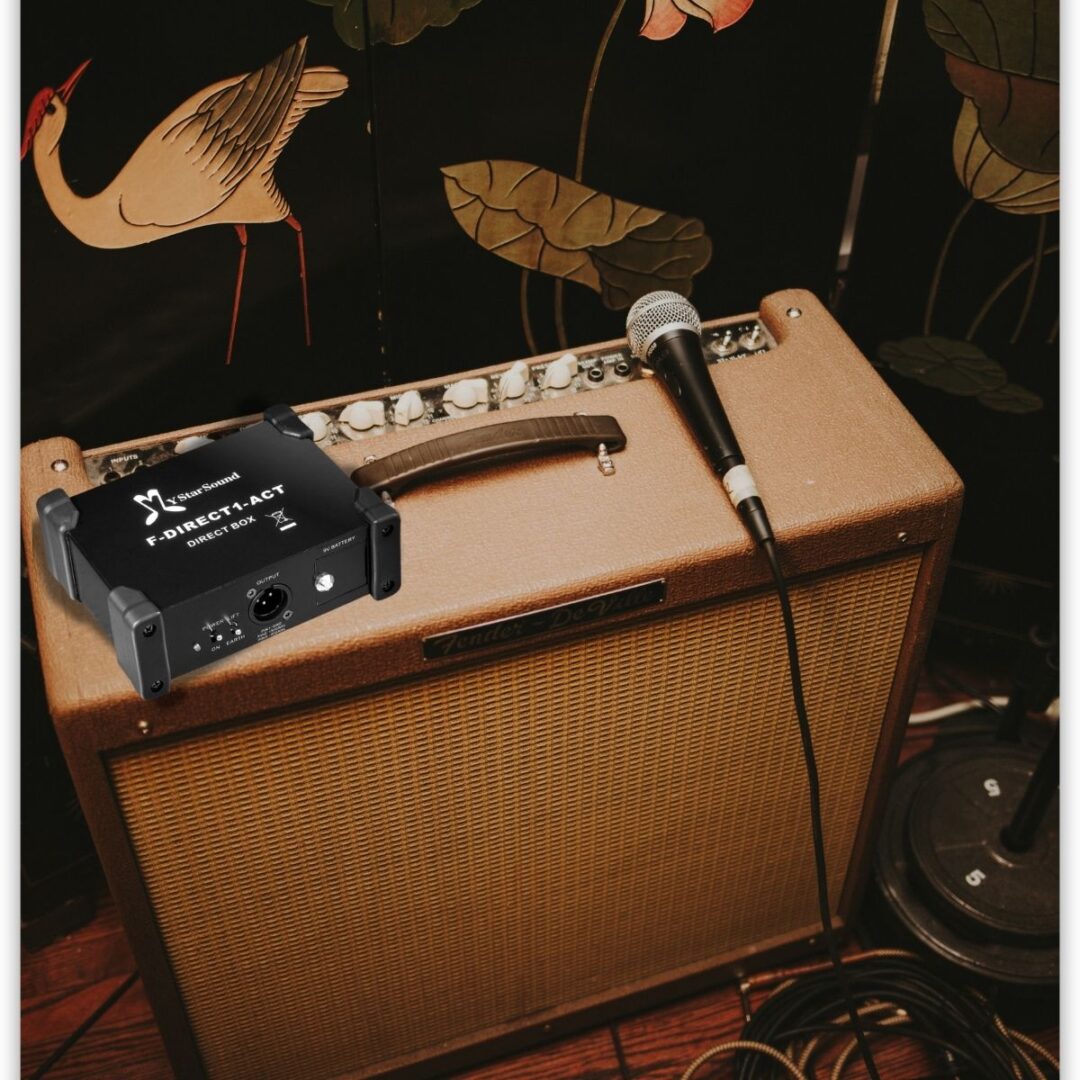

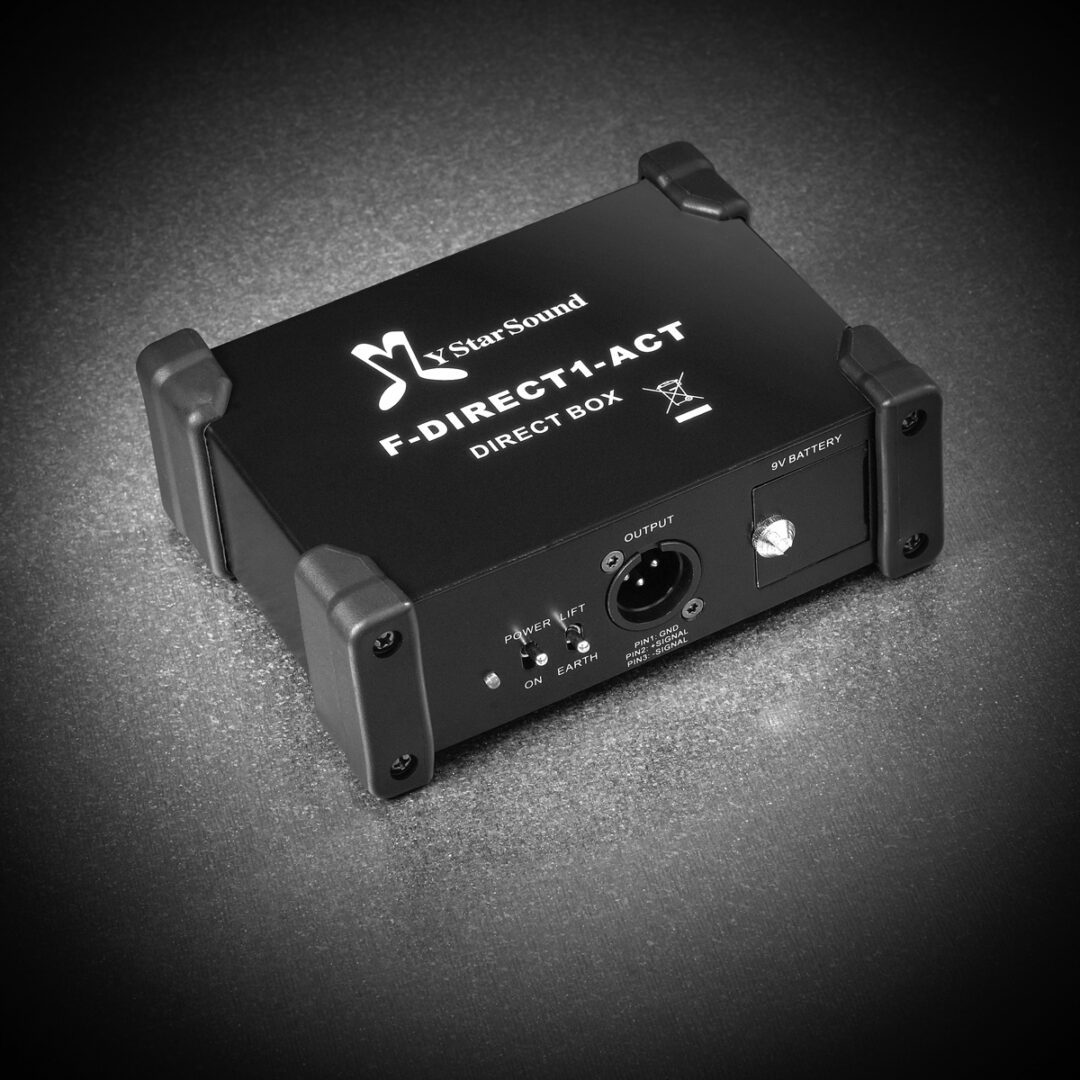

The F-Direct 1-ACT Direct Box

The F-Direct 1-ACT Direct Box by MyStarSound is an active Direct Box with 9 Volt or Phantom Power and has the following features:

  • 1/4 inch Unbalanced and XLR Unbalanced Inputs
  • XLR Balanced Output
  • Link Output
  • Ground Lift
  • PB Pad
  • Frequency response 10Hz-40kHz
MyStarSound

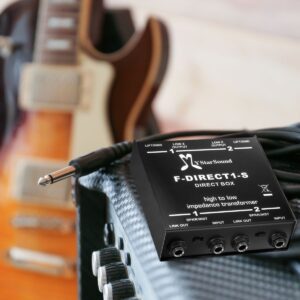

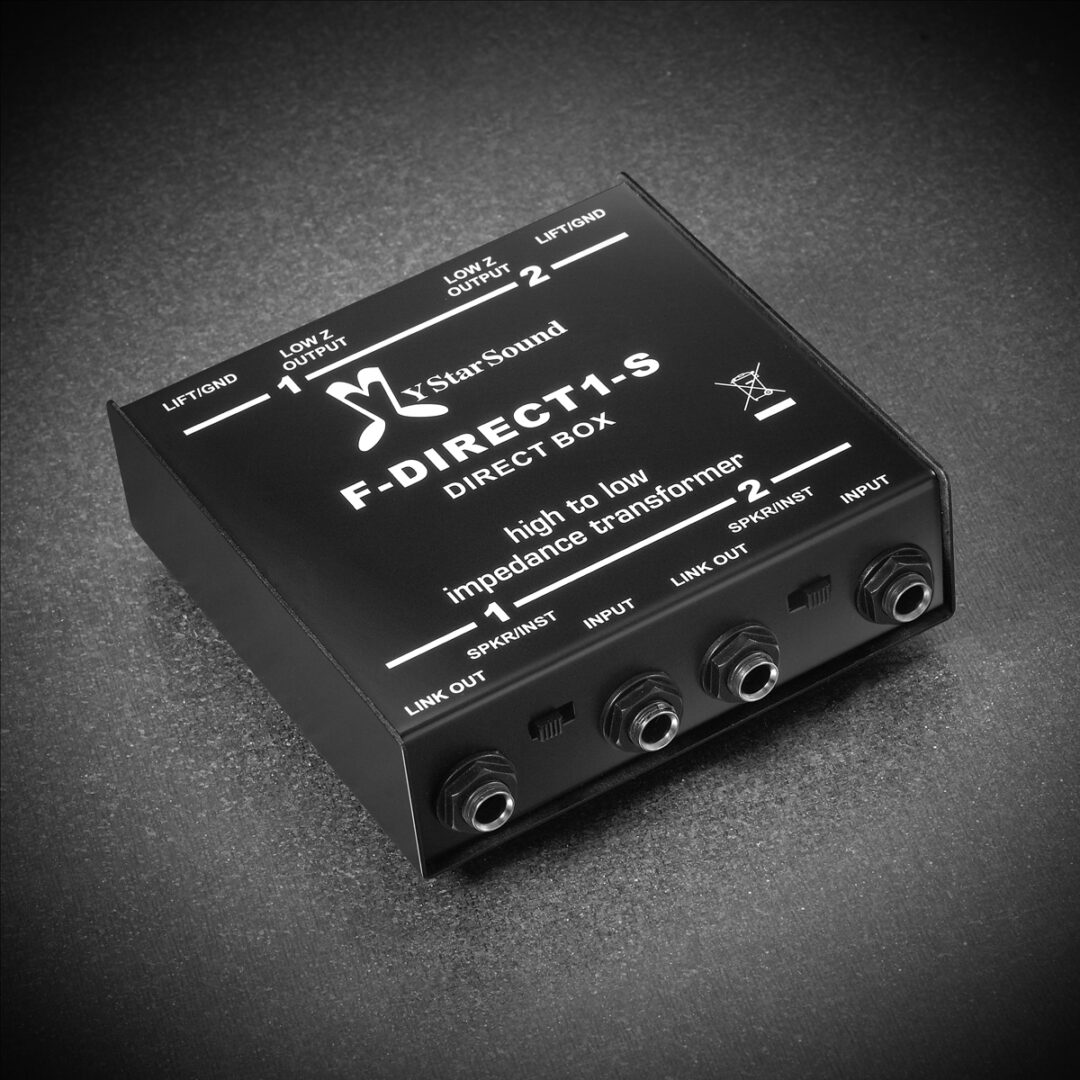

The F-Direct1-S Box

The F-Direct1-S Box by MyStarSound is a Stereo/Dual Direct Box with 2 Inputs and 2 Outputs.  Save time and space with this "Dual" Direct Box by using either as a stereo unit or to connect separate instruments for use at the same time.  Each Dual Direct Box features:

  • (2)  1/4 inch Unbalanced Inputs
  • (2) XLR Balanced Low Z Outputs
  • (2) Link Outputs
  • (2) Ground Lifts
  • Frequency response 10Hz-30kHz (instrument)/10Hz-20Khz (speaker)

ALL MYSTARSOUND DIRECT BOX PRODUCTS COME WITH A  5 YEAR WARRANTY.

Contact your MyStarSound representative today for additional details or pricing:

1-877-789-1626 (Michigan office)  1-877-853-8106 ( Tennessee office)
