MyStarSound
Single Digital Network Adaptor

Dante™ audio to analogue audio adapters, each with one RJ45 Dante input, and one and two (respectively) AX series XLR analogue outputs in a molded housing. Amphe-Dante products enable simple connection of analogue equipment toits network and can receive audio channels from a Dante network and provide studio-quality, low-latency audio via an XLR connector to analogue audio equipment. Any audio available on the Dante network can be routed via the XLR outputs to an amplifier, powered speaker, mixing console, digital signal processor (DSP), or other analogue audio device.  Contact your MyStarSound representative for additional details or pricing.

Dante pdf
MyStarSound
Dual Digital Network Adaptor

Amphe-Dante feature high-quality digital-to analogue converters, and support a range of sample rates and bit depths. The freely available Dante Controller software application is used to automatically discover and configure its devices which are connected to the Digital network. Device names, channel labels, signal routing and other parameters (for example, sample rate and latency) can be configured via the network using Dante Controller. A variety of network and clock synchronization diagnostic tools are also available for your use.  Amphe-Dante products use Power over Ethernet (PoE). Power can be provided through the Ethernet cable from a PoE-capable network switch, or from a separate PoE injector.  Contact your MyStarSound representative for additional details or  pricing

Available Software Options

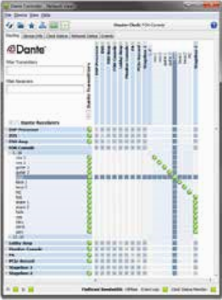

Dante Controller:

 The Dante Controller is a free software application that enables you to route audio and configure devices on a Dante network. As well as automatic device discovery, one-click signal routing and user-editable device and channel labels, Dante Controller provides essential device status information and powerful real-time network monitoring, including device-level latency and clock stability stats, multicast bandwidth usage, and customized event logging, enabling you to quickly identify and resolve any potential network issues.

Dante Via:

Dante Via is powerful and easy-to-use software that delivers unprecedented routing of computer-based audio, allowing a wide range of applications and devices to be networked and interconnected, easily and inexpensively. Dante Via network-enables locally-connected USB and Firewire devices, and a huge range of software applications, allowing you to route computer -based audio across an existing Dante network, and create standalone Dante networks without dedicated Dante hardware.  Contact your MyStarSound representative for additional details and pricing.

Dante Virtual Soundcard:

Dante Virtual Soundcard turns your computer into a Dante-powered workstation, seamlessly integrating your PC or Mac with Dante audio devices on your network. You can instantly connect to a Dante network to record, process and play out using any audio application and any combination of Dante-enabled devices.  We have provided the Amphenol Specs for you below, however if you have any questions, please contact your MyStarSound representative!



Amphenol Specs

RJD1112-XXXX*

RJD1212-XXXX*

GENERAL

Input Connector

1 x RJ45 (Ethernet)

Output Connector

1x XLR Male

2x XLR Male

ELECTRICAL

Power Consumption

< 2 Watt

Power over Ethernet (Required)

Class 1 802.3af POE PD compliant

ANALOG AUDIO

Output level (Balanced)

+4dBu @ 12 dB headroom

Output Impedance

150 ohm balanced or 75 ohm unbalanced

Frequency Response

20 Hz to 20 kHz (-/+0.5 dB)

Dynamic Range

> 100 dB

Signal to Noise

> 100 dB

Total Harmonic Distortion

< 0.05% at +4 dBu

Channel Separation

N/A

> 100 dB

Channel Matching

N/A

< 0.25 dB

DANTE® AUDIO

Number of Channels

1 output channel

2 output channels

Sample Rate

44.1 kHz, 48 kHz (default), and 96 kHz

Bit Depth

24 bits

Network Speed

100 Mbps

CLIMATIC

Protection Class

IP41

Operating Temperature

-5ºC to +60ºC (23ºF to +140ºF)

MECHANICAL

Insertion and Withdrawal Force

≥10N - ≤30N

Weight       Single Channel XLR

                    Two Channel XLR

136g (0.299lb)

192g (0.423lb)

MATERIALS

Housing

PVC 60P Black
